Butterfly Valves

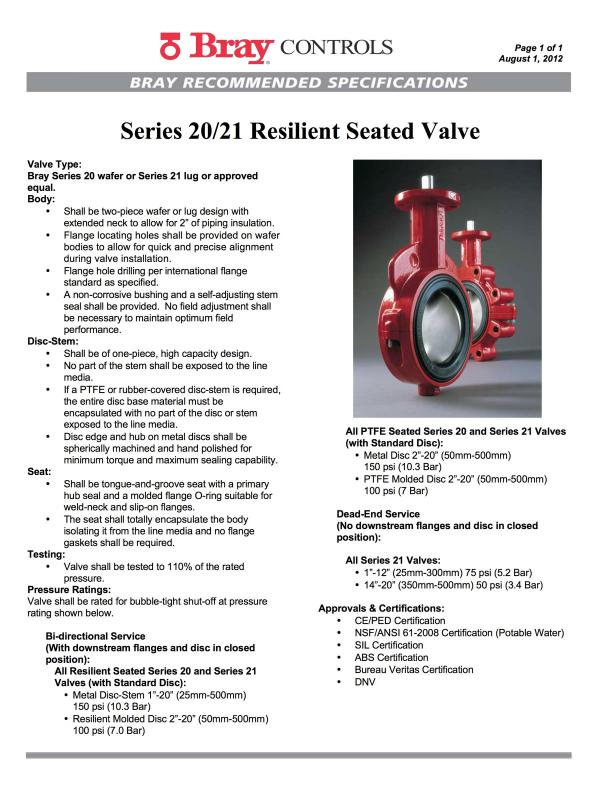

Bray Series 20/21 Resilient Seated Butterfly Valve

Size Range: 1” to 20”
Pressure Ratings: 150 psi
Connections: Wafer, Lugged
Body Material: Cast Iron, Ductile Iron, Stainless Steel, Aluminium
Seat Material: BUNA-N, EPDM, PTFE Lined EPDM, FKM, Polyurethane

Brochure Manual

Bray Series 22/23 Resilient Seated Butterfly Valve

Size Range: 2” to 24”
Pressure Ratings: 150 psi
Connections: Wafer, Lugged
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Seat Material: PTFE, Conductive PTFE, UHMWPE

Brochure Manual

Bray Series 30/31 Resilient Seated Butterfly Valve

Size Range: 2” to 20”
Pressure Ratings: 175 psi Shutoff, 250 psi Body
Connections: Wafer, Lugged
Body Material: Cast Iron, Ductile Iron, Carbon Steel, Aluminium
Seat Material: BUNA-N, EPDM, FKM, Polyurethane

Brochure Manual

Bray Series 41R Double Offset High Performance Butterfly Valve

Size Range: 16” to 54”
Pressure Rating: 100 psi
Connections: Lugged
Body Material: Phosphatized Ductile Iron
Seat Material: RTFE

Brochure Manual
